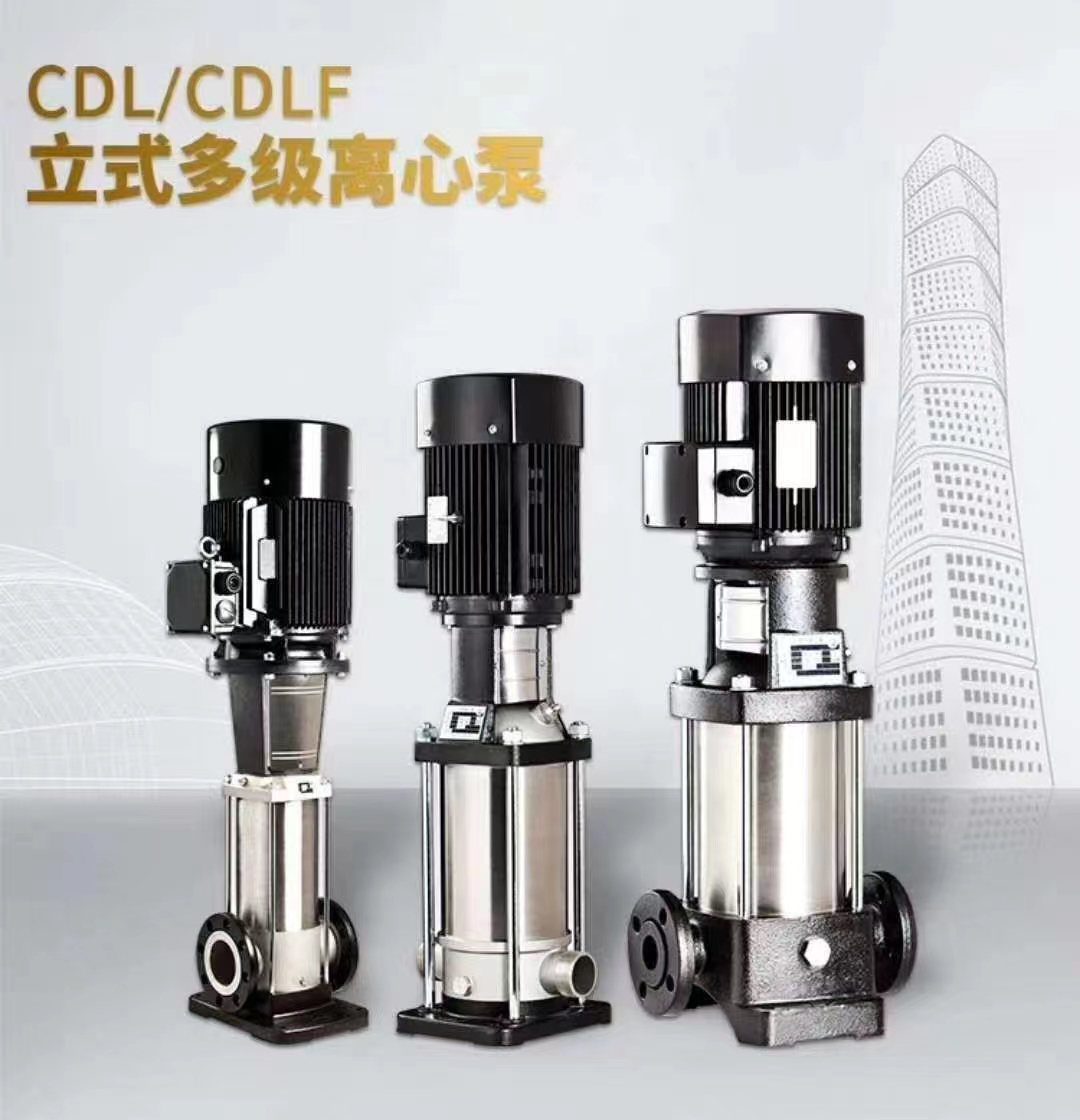

CDL.CDLF立式不銹鋼多級泵特點|features

QDL、QDLF系列不銹鋼多級離心泵是非自吸立式多級離心泵，采用標準立式電機和集裝式機械密封，具有體積小、重量輕、噪聲低、維護方便、外形美觀等優點，廣范應用于民用、工業、農業、水處理系統等領域。

QDL、QDLFseries Stainless Steel Multistage Centrifugal Pump is a kind of non self-priming vertical multistage centrifugal pumps, which adopts classical vertical electric motor and assembly mechanicalseal. It possesses many advantages, such as small volume, light weight,low noise,easy maintenance,elegantappearance etc.DBL Series are widely used in the areas of daily life,industry,agriculture,water treatment system, and so on.

泵|pumps

立式結構，進出口法蘭在同一中心線上，結構緊湊，占地面積小，安裝方便。

Vertical and compact structure, the inlet and outlet flanges are located at the same central line, small area occupation and easy installation.

采用集裝式機械密封，使安裝維護操作更安全、方便，并確保密封的可靠性。

Assembly mechanical seal,making installation and maintenance safer and more convenient,and guaranteeing the reliability of the mechanical seal.

QDLF型過流部件均采用不銹鋼材質(QDL型主要過流部件采用不銹鋼材質)，不污染介質且保證使用壽命長、外形美觀。

Wet parts are made of stainless steel, which will not contaminate medium and possess lengthy service life And elegant appearance.

電機軸與泵軸通過聯軸器直接連接，連接精度高。

Electric motor shaft directly and accurately connects with pump shaft through coupling.噪聲低，振動小。

Low noise and less vibration.采用標準化設計，通用性好。

Standardized design and outstanding universality.

電機|motor

防護等級protection class:IP55絕緣等級insulation class: F

標準電壓Standard volrage:1x220-230/240V50Hz

3x200V-220/346-380V 50Hz3 x 220V-240/380-415V 50Hz3x380-415V 50Hz
